3D SPATIAL CAMERAS

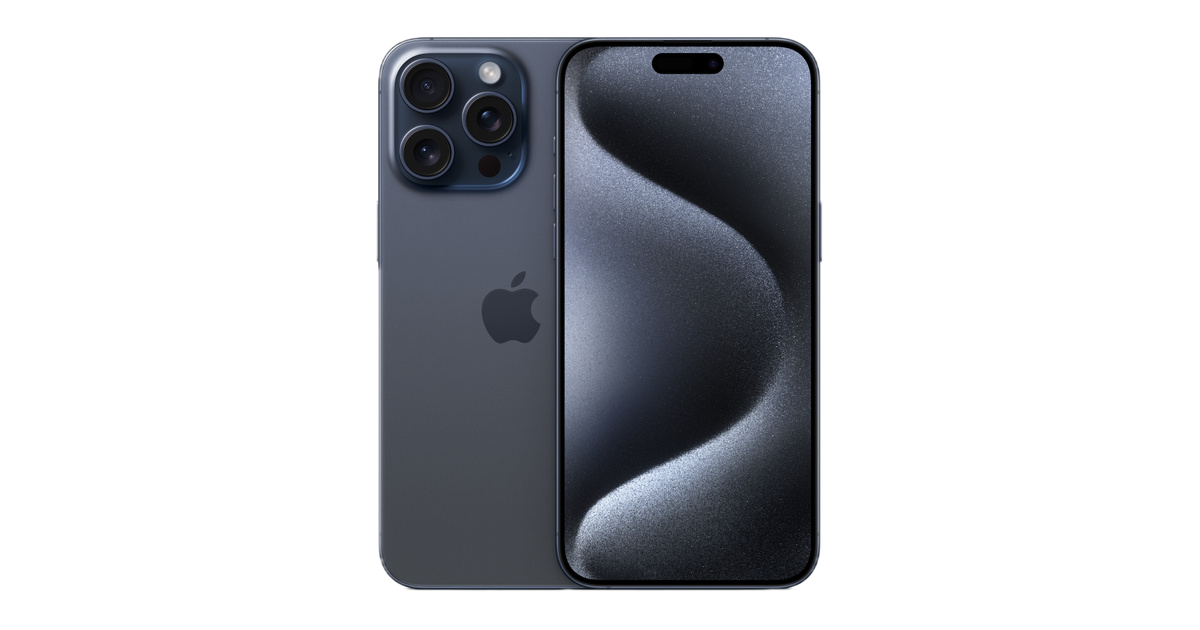

iPHONE 15Pro, 16Pro 24mm F1.78:
ID~20mm, 63º FOV
Optimized distance 3-8ft (90-240cm)
4K as 2x 1920x1080 HD, SDR
12 stops, up to 30fps
Nimble, ultralight, affordable
VISION PRO 18mm F2:
ID 55mm (estimated), 70.87º FOV
Optimized distance 5ft (150cm)
Camera 4K as 2x 2000x2000 stereo, SDR
Playback 8K as 2x 3660x3200, ID 51-67mm, 120º FOV
12 stops (estimated), up to 30fps
Bulky, awkward, expensive

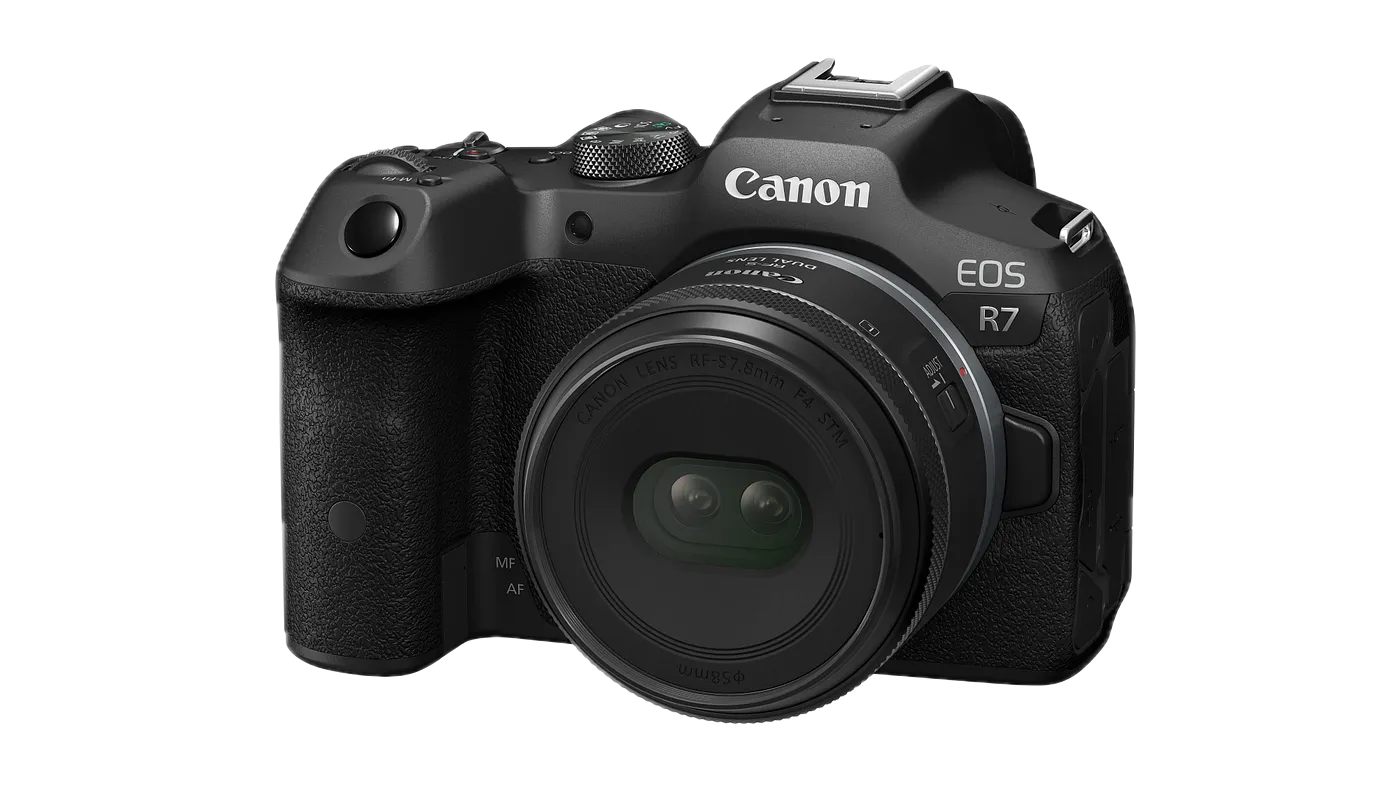

CANON R7 (APS-C) with CANON RF-S 7.8mm F4 dual lens:
APS-C 22.3 x 14.8mm sensor
Focus 0.15m - infinity
ID 11.8mm, 63º FOV
Optimized distance 1-2ft, best for close up,
HY ND filter 67mm (stepped up from 58mm)
4K (2x 2K), C-Log3, cinema gamut, 180º Shutter angle, 800 ISO (max 3200), manual exposure
APS-C not great in low light
10 stops, up to 30fps
Nimble, light, affordable

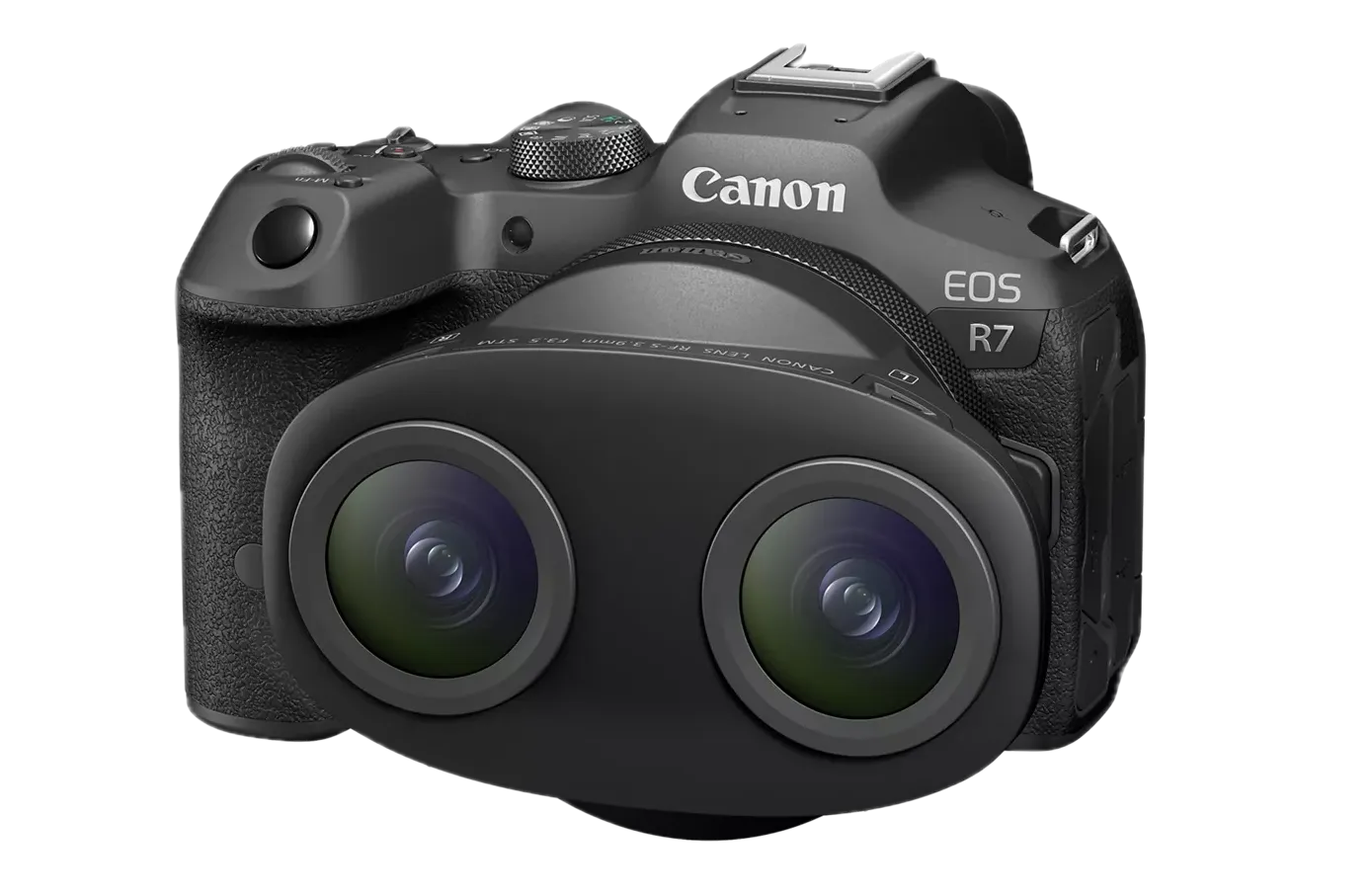

CANON R7 (APS-C) with RF-S 3.9mm F3.5 dual fisheye lens:
APS-C 22.3 x 14.8mm sensor
Focus 0.2m - infinity
Optimized distance: 5ft
ID 60mm, 144º FOV
Rear 30.5mm internal filter (screw-on or gel)
4K (2x 2K), C-Log3, cinema gamut, 180º Shutter angle, 800 ISO (max 3200), manual exposure
APS-C not great in low light
10 stops, up to 30fps
Small, light, affordable
3D IMMERSIVE CAMERAS

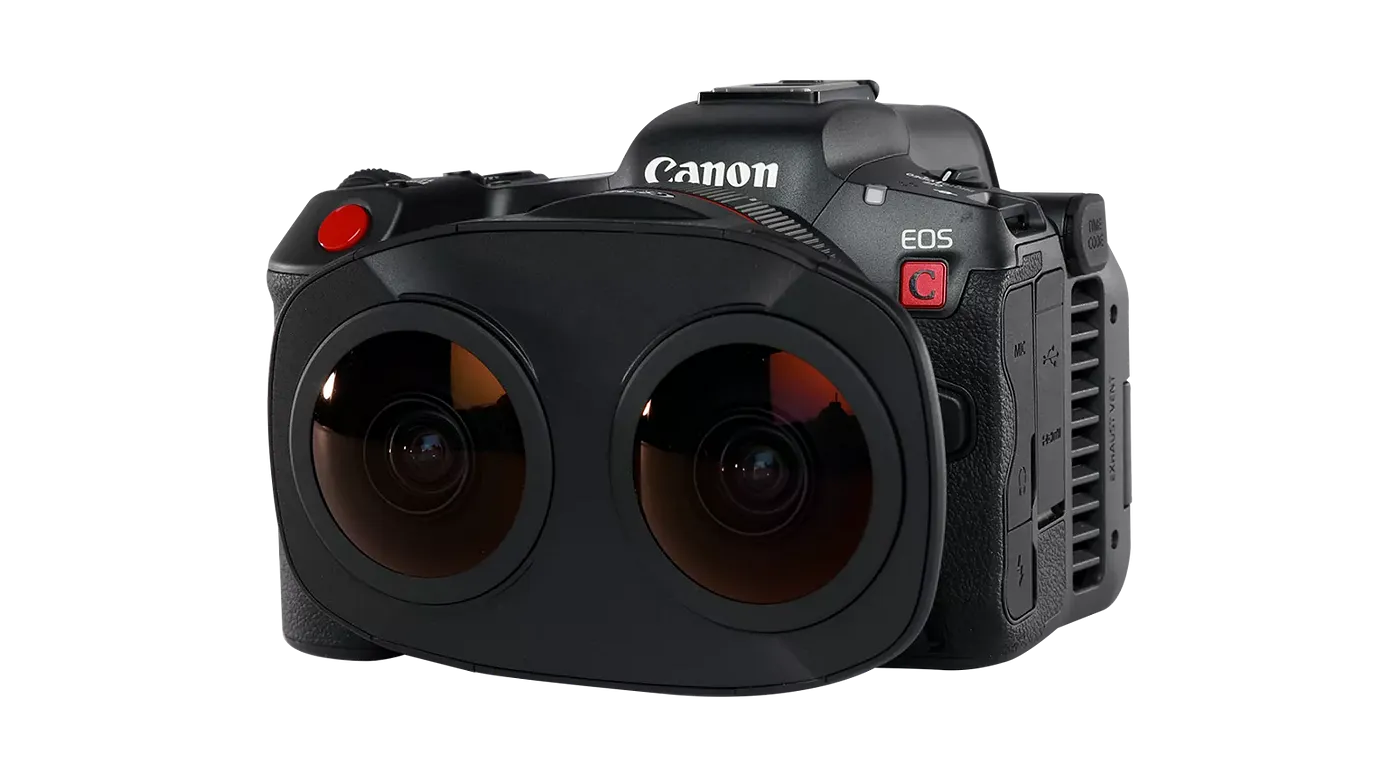

CANON EOS C80, R5, R5 mkII, R5C, R6 mkII with CANON RF 5.2mm F2.8 dual fisheye lens:
FF 36 x 24mm sensor
Focus 0.2m-infinity
ID 60mm, 190º FOV
Rear gelatin filter holder
Optimized distance 5ft
6K (2x 3K - EOS-C80) 8K (2x 4K - R5, R5mkII, R6mkII)
C-Log3, Raw RT, cinema gamut, 180º Shutter angle, 800 ISO (max 3200), manual exposure
14 stops, up to 120fps (EOS-C80), up to 60fps (R5C, R5mkII, R6mkII), up to 30fps (R5)
Small, expensive

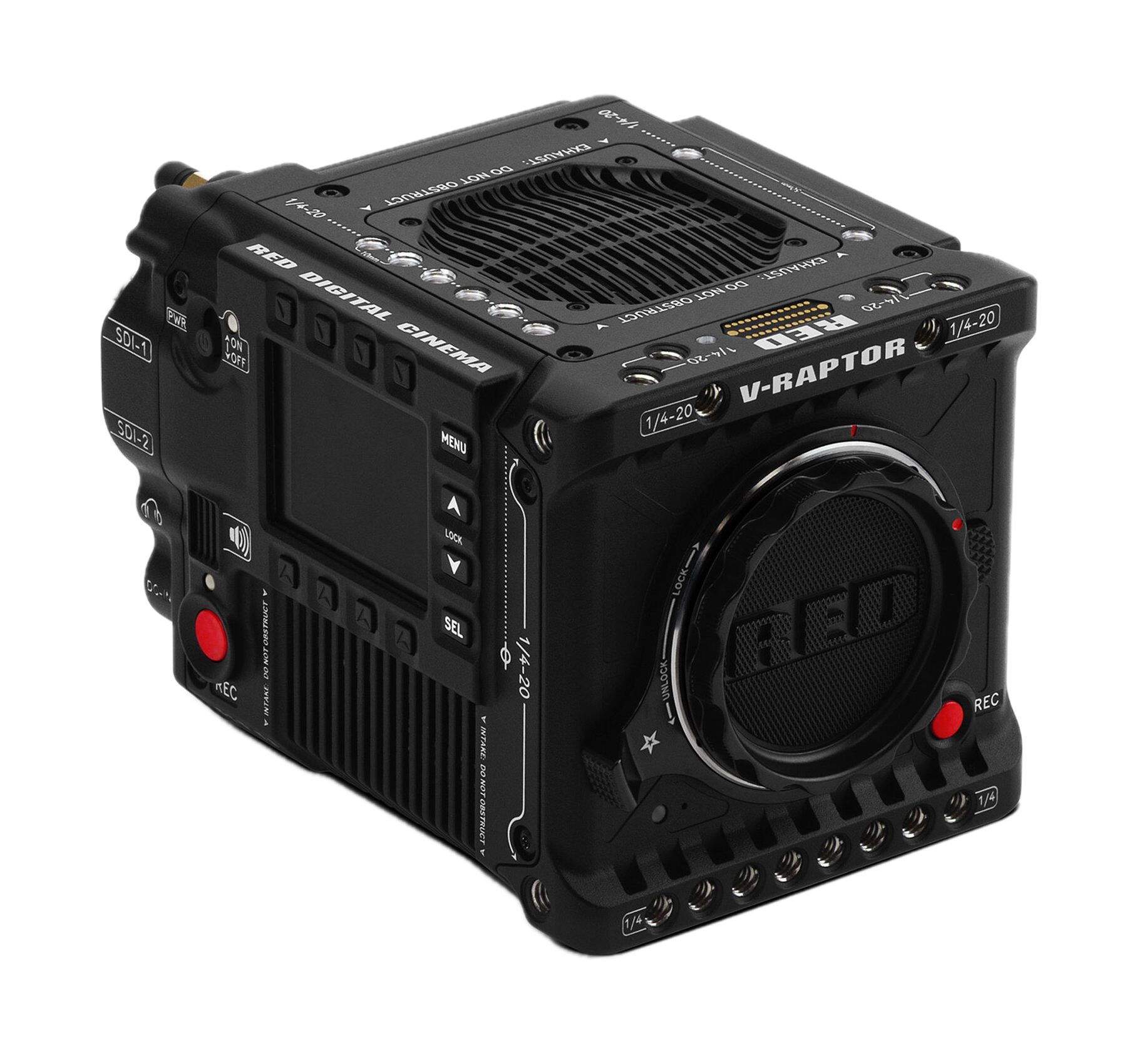

RED V RAPTOR with CANON RF 5.2mm F2.8 dual fisheye lens:
S35 27.03 x 14.26mm sensor
Focus 0.2m-infinity
ID 60mm, 190º FOV
Rear gelatin filter holder
Optimized distance 5ft
Near 8K (near 2x 4K)
NO OLPF for sharper image, best for low light, highlight protection for extended DRRedcodeRAW, Log, cinema gamut, global shutter, 180º shutter angle
17 stops, 20 stops with XRange, up to 120fps
Big, bulky, expensive

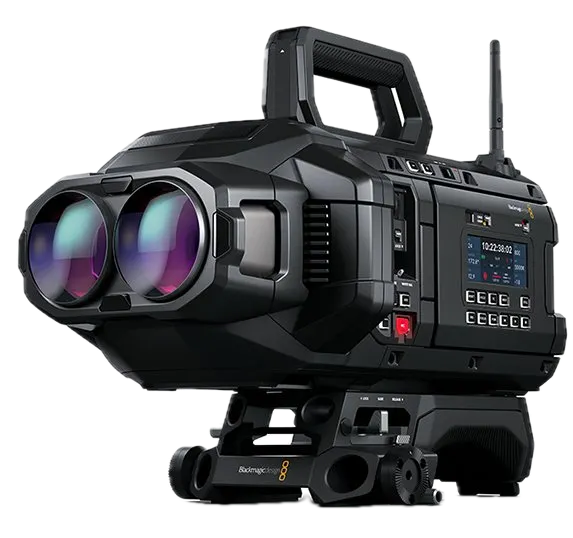

BLACKMAGIC DESIGN URSA Cine Immersive with built-in dual fisheye lens:
Dual sensor 23.66 x 20.88 each
Focus ?
ID ?, 180º FOV
Built in ND filters, 2, 4, 6, 8
16K (2x 8K)
16 stops, up to 90fps
Big, bulky, expensive
